برند : سی ان تی دی CNTD
دستهبندی : اتوماسیون صنعتی
میکروسوئیچ فشاری ساده سایز کوچک سی ان تی دی CNTD مدل CM-1307
تعداد کنتاکت ها : 1NO+1NC
قابلیت تنظیم : ندارد
نوع لیمیت سوئیچ : فشاری
ناموجود

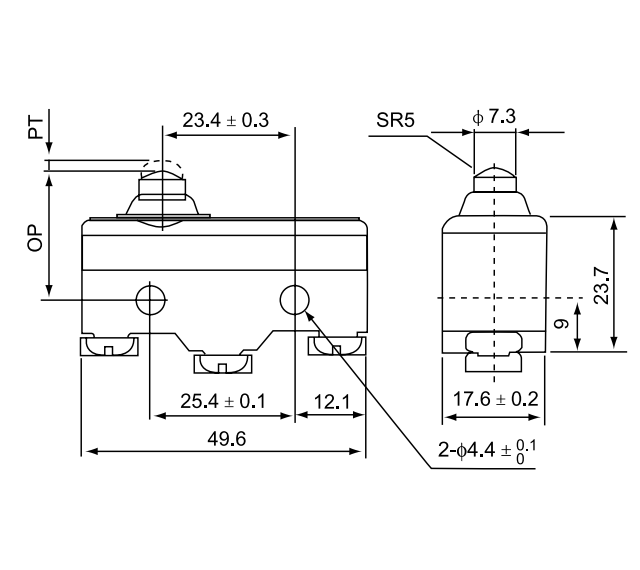

متاسفانه این کالا در حال حاضر موجود نیست. می‌توانید از طریق لیست بالای صفحه، از محصولات مشابه این کالا دیدن نمایید.ابعاد:
مشخصات فنی:
|
Rated Voltage |
Noninductive Load (A) |
Inductive Load (A) |
Inrush Current |
|||||||
|
Resistance Load |
Lamp Load |
Inductive Load |
Motor Load |
|||||||
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
|
125VAC |
15 |
3 |
1.5 |
15 |
5 |
2.5 |
30 |
15 |
||
|
8VDC |
15 |
3 |
1.5 |
15 |
5 |
2.5 |
||||
|
Operation speed |
0.05mm-1m/s（ Plunger type) |
|
Operating frequency |
Electical: 20 operations/min. |
|
Contact resistance |
15mΩ max. (initial value) |
|
Insulation resistance |
100mΩ min. (at 500VDC) |
|
Dielectric Strength |
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between current-carrying and non--current-carrying metal parts |
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
|
Vibration |
(*10 to 20Hz): 1.5 Vibration amplitude action duration: 10 to 55Hz |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G'S) |
|
Ambient temperature |
Using：-20~+80℃（With no icing） |
|
Humidity |
General purpose type: 85% RH max., Sealed type: 95% RH max. |
|
Electrical life |
500,000 operations above |
|
Weight |
About 22 to 58g |
Operating Characteristics
|
Models |
CM1300 |
CM1301 |
CM1303 CM1303M |
CM1305 |
CM1306 |
CM1307 |
CM1308 CM1308X |
CM1309 |
CM1701 CM1706 |
CM1702 |
CM1703 CM1703M |
CM1704 CM1704M |
CM1705 |
CM1743 CM1743M |
|
OF (Max.) |
350g |
300g |
300g |
350g |
350g |
350g |
350g |
350g |
70g |
160g |
100g |
160g |
10g |
160g |
|
RF (Min.) |
114g |
50g |
50g |
114g |
114g |
114g |
114g |
114g |
14g |
28g |
22g |
42g |
3g |
42g |
|
PT (Max.) |
0.4mm |
4mm |
4mm |
0.4mm |
0.4mm |
0.4mm |
0.4mm |
0.4mm |
10mm |
5mm |
7.1mm |
2.7mm |
20mm |
2.7mm |
|
OT (Min.) |
0.13mm |
1.6mm |
1.6mm |
1.6mm |
1.6mm |
5.5mm |
3.58mm |
3.58mm |
5.6mm |
2mm |
4mm |
2.4mm |
5.6mm |
2.4mm |
|
MD (Max.) |
0.05mm |
1.3mm |
1.3mm |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
1.27mm |
1mm |
1.02mm |
0.5mm |
3mm |
0.5mm |
|
FP (Max.) |
20.6mm |
31.8mm |
28.2mm |
24.8mm |
36.5mm |
32.5mm |
43.6mm |
|||||||
|
OP(mm) |
15.9±0.4 |
17.4±0.8 |
28.6±0.8 |
28.2±0.5 |
21.5±0.5 |
21.8 0.8 |
33.4±1.2 |
33.4±1.2 |
19±0.8 |
19±0.4 |
30.2±0.8 |
30.2±0.4 |
19±0.8 |
43.1±0.8 |
